Product Description

Inclusive Multi-Unit Abutments are prefabricated, screw-retained intraoral abutments intended to be connected directly to endosseous implants in partially or fully edentulous patients for the retention of cast or milled bar overdentures. For implant-supported prostheses, six or more implants are recommended in the maxilla, four or more in the mandible. If clinical conditions dictate fewer implants, an implant-retained, tissue-supported prostheses is indicated. Multi-unit abutments are precisely machined from titanium alloy, and are available with a variety of collar heights to achieve optimal emergence from shallow or deep gingival wells. Each Inclusive Multi-Unit Abutment is shipped with a delivery carrier color-coded to indicate the restorative platform of the seated implant.

Straight multi-unit abutments lack any anti-rotational features at the implant-abutment interface. The apical portion of a straight multi-unit abutment is threaded for attachment with the internal connection of a seated implant. For abutment delivery, the occlusal surface features a male hex head compatible with the Inclusive Multi-Unit Driver.

Angled multi-unit abutments of 17 degrees or 30 degrees enable clinicians to compensate for the divergence of seated implants or to otherwise accommodate an angled path of insertion. Angled multi-unit abutments feature an anti-rotational connection interface specific to the matching implant platform, and are attached to the implant fixture with an angled multi-unit abutment screw.

Both straight and angled multi-unit abutments feature a female connection port at the coronal apex, to allow for the attachment of a screw-retained or fixed-removable dental prosthesis with a multi-unit restorative screw (Inclusive Prosthetic Screw).

Accessories

Each angled Inclusive Multi-Unit Abutment is packaged with a separate retaining screw (Inclusive Angled Multi-Unit Abutment Screw) compatible with the restorative instrumentation of the specified implant system. Prosthetic screws are sold separately.

Contraindications

The following conditions would contraindicate use of Inclusive Multi-Unit Abutments: (a) greater than 45 degrees divergence from parallel for a splinted restoration when using 30-degree angled multi-unit abutments; (b) greater than 32 degrees divergence from parallel for a splinted restoration when using 17-degree angled multi-unit abutments. Angled abutments should not be used to restore small-diameter implants (less than or equal to 3.0 mm) in the posterior region.

Sterility

Inclusive Multi-Unit Abutments are packaged STERILE. They are intended for single-use only, prior to the expiration date printed on the product label. Do not use sterile products if the packaging has been compromised or previously opened. Do not re-sterilize.

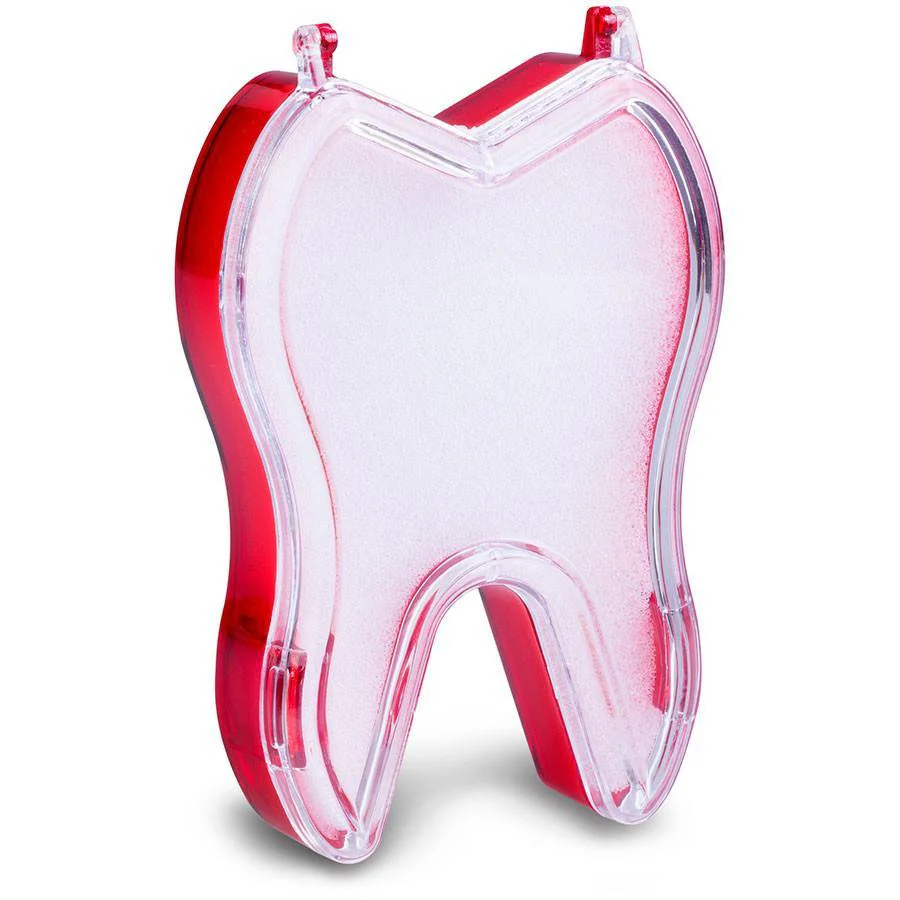

Tooth-Shaped Crown Box, Red, 50/pk
